Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Transmission Control System Transaxle Control System
>>
Hybrid Transaxle Assembly
>>
Components
Hybrid Transaxle Assembly: Components
Download the full database via torrent (~1.1 TB)

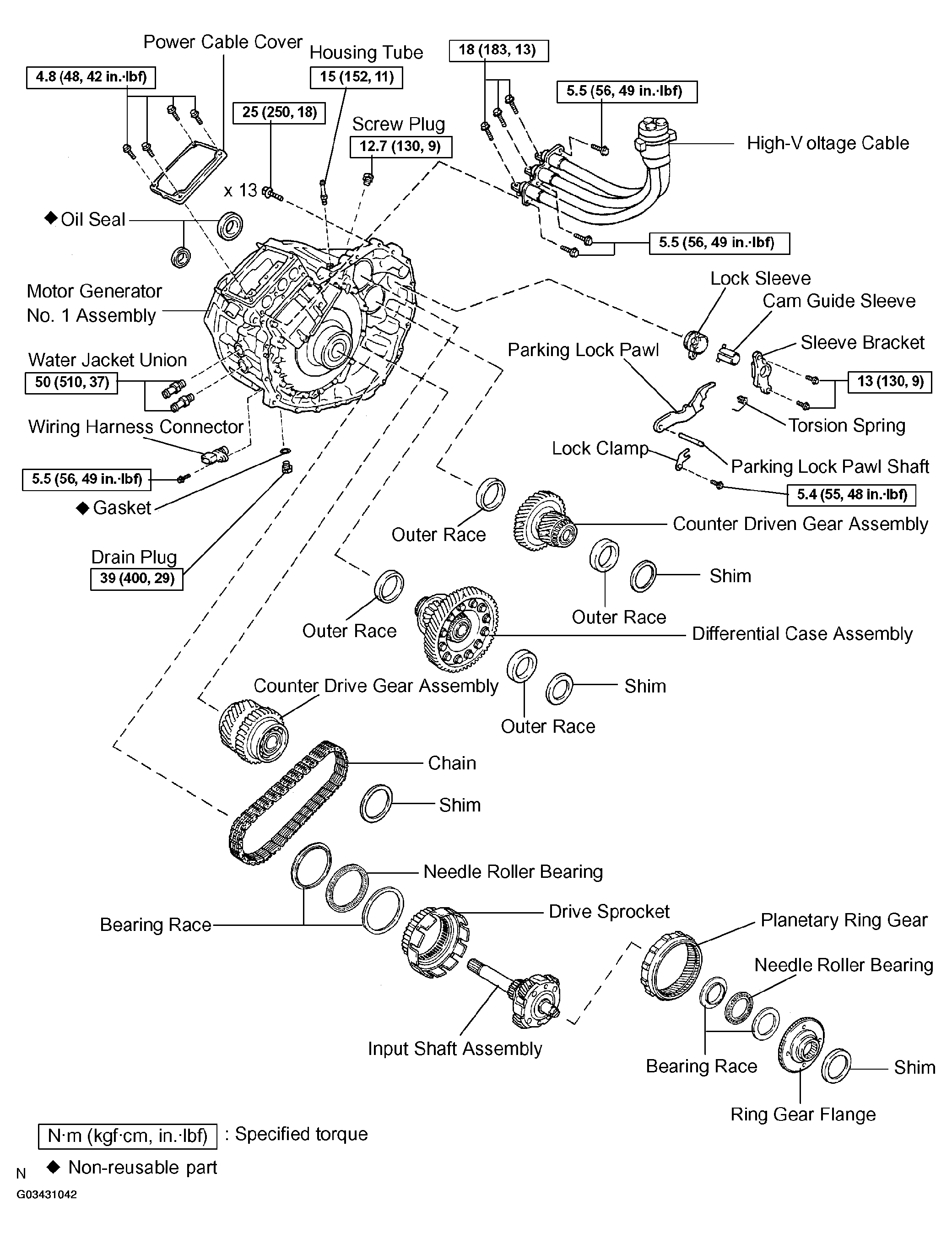

Fig 1: Identifying Hybrid Transaxle Assembly Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

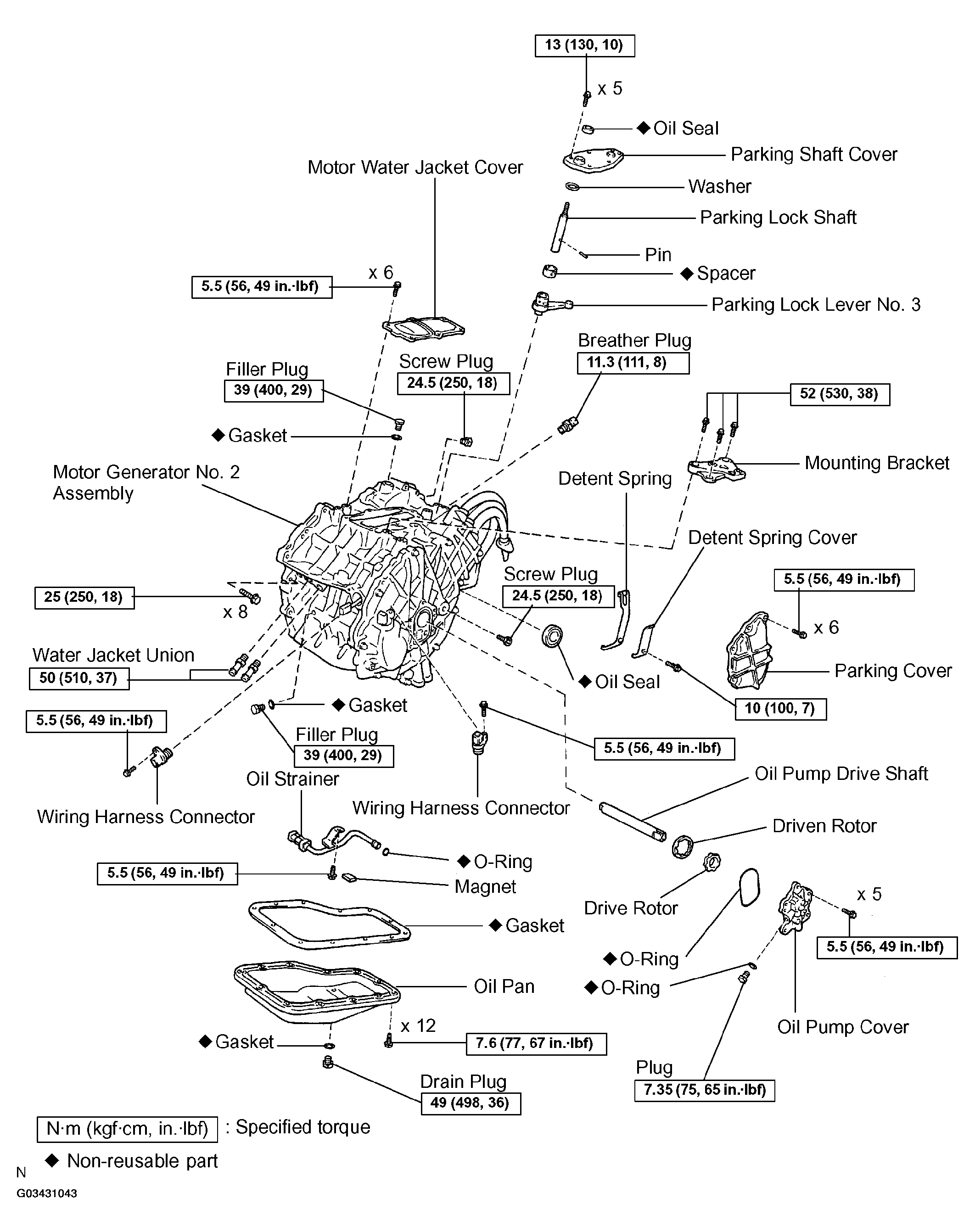

Fig 2: Identifying Hybrid Transaxle Assembly Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
