Fuel Pressure Regulator: Components
Download the full database via torrent (~1.1 TB)

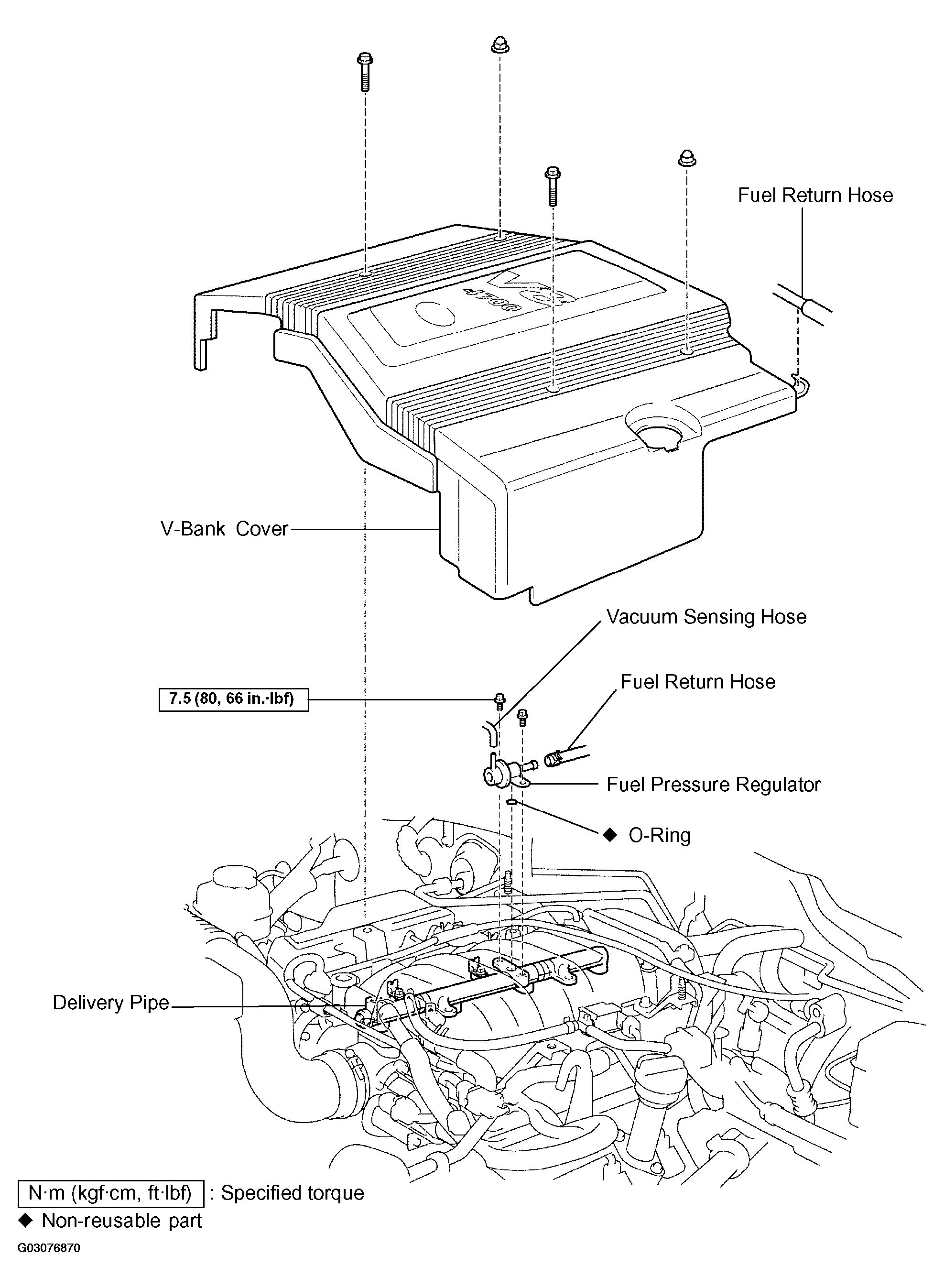

Fig 1: Identifying Fuel Pressure Regulator Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
