Back Door Glass: Components
Download the full database via torrent (~1.1 TB)

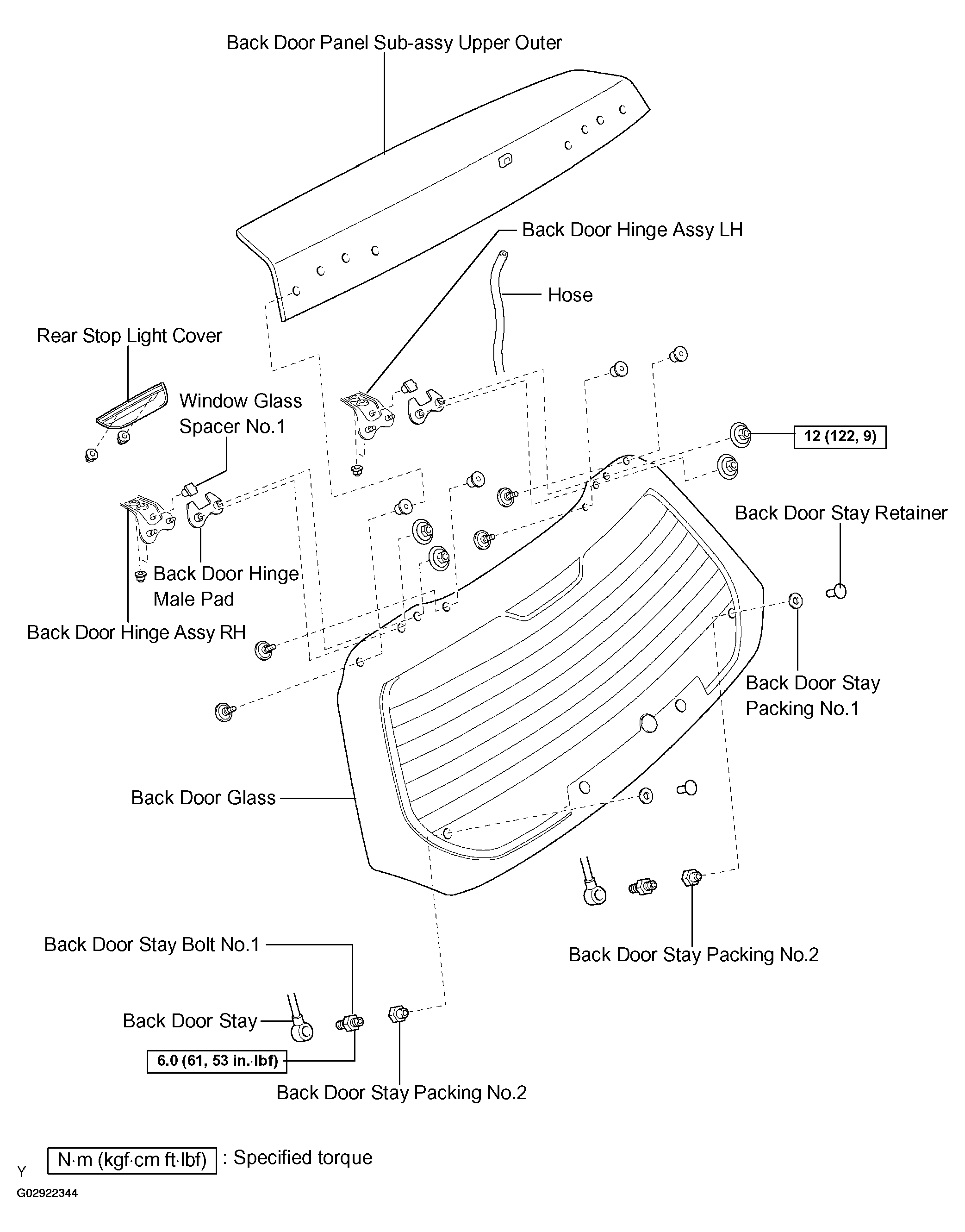

Fig 1: Identifying Back Door Glass Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
