Quarter Window Assembly LH: Components

Download the full database via torrent (~1.1 TB)

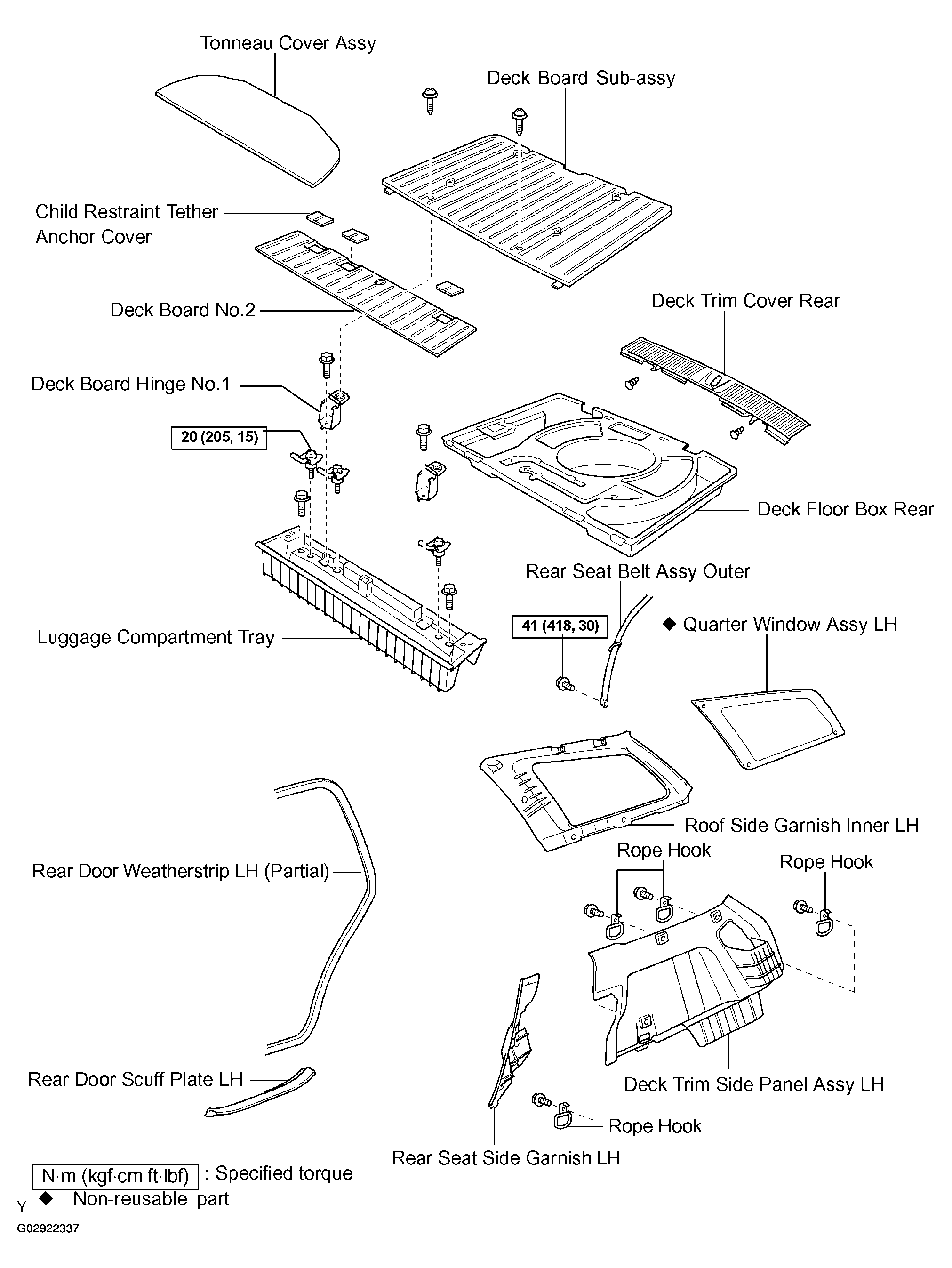

Fig 1: Identifying Quarter Window Assy LH Components

G02922337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
