System Diagram
Download the full database via torrent (~1.1 TB)
The fuel system is determined by the ECM based on signals from various sensors.

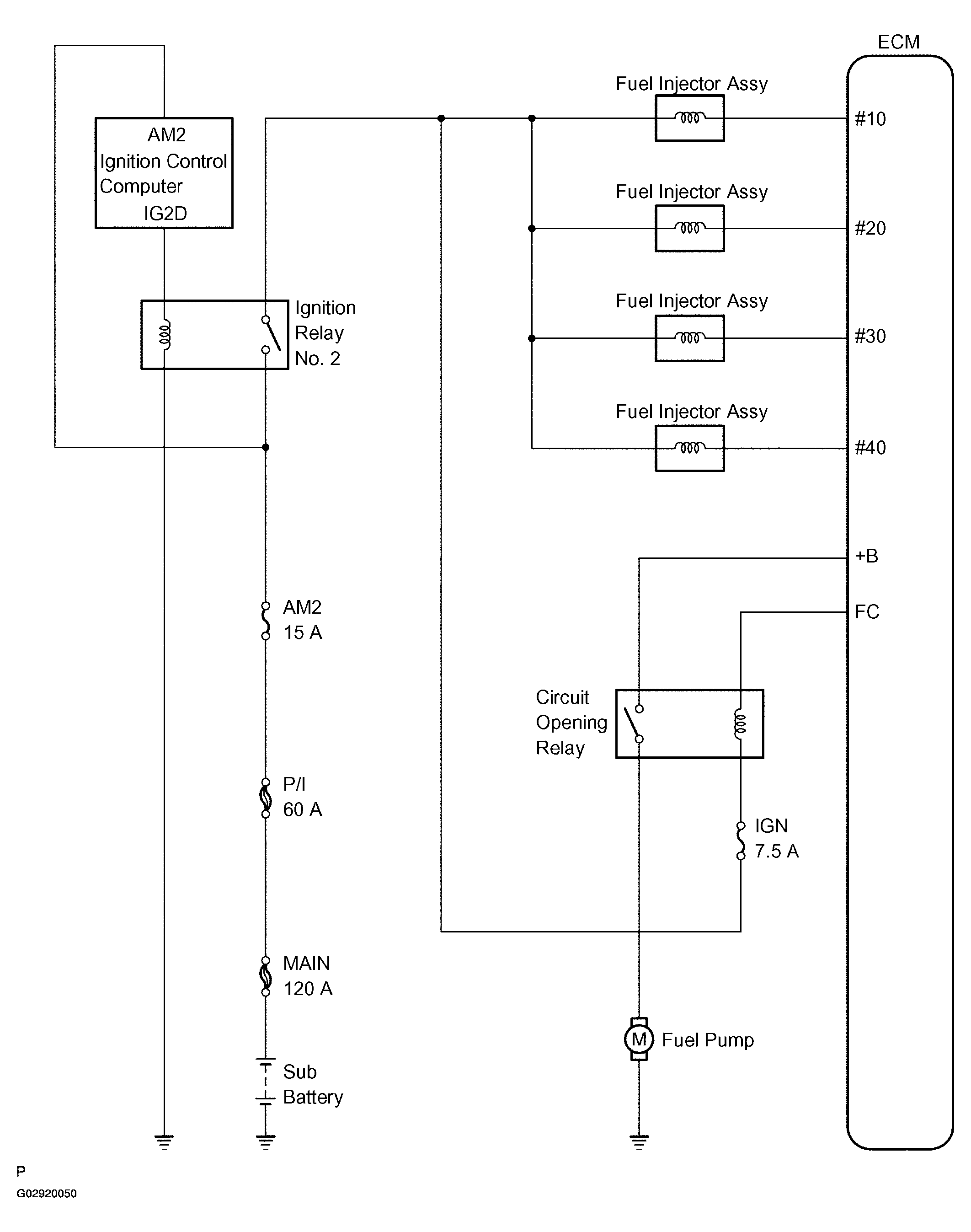

Fig 1: Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
