Knock Sensor (1NZ-FXE)
>>
Components
Knock Sensor (1NZ-FXE): Components
Download the full database via torrent (~1.1 TB)

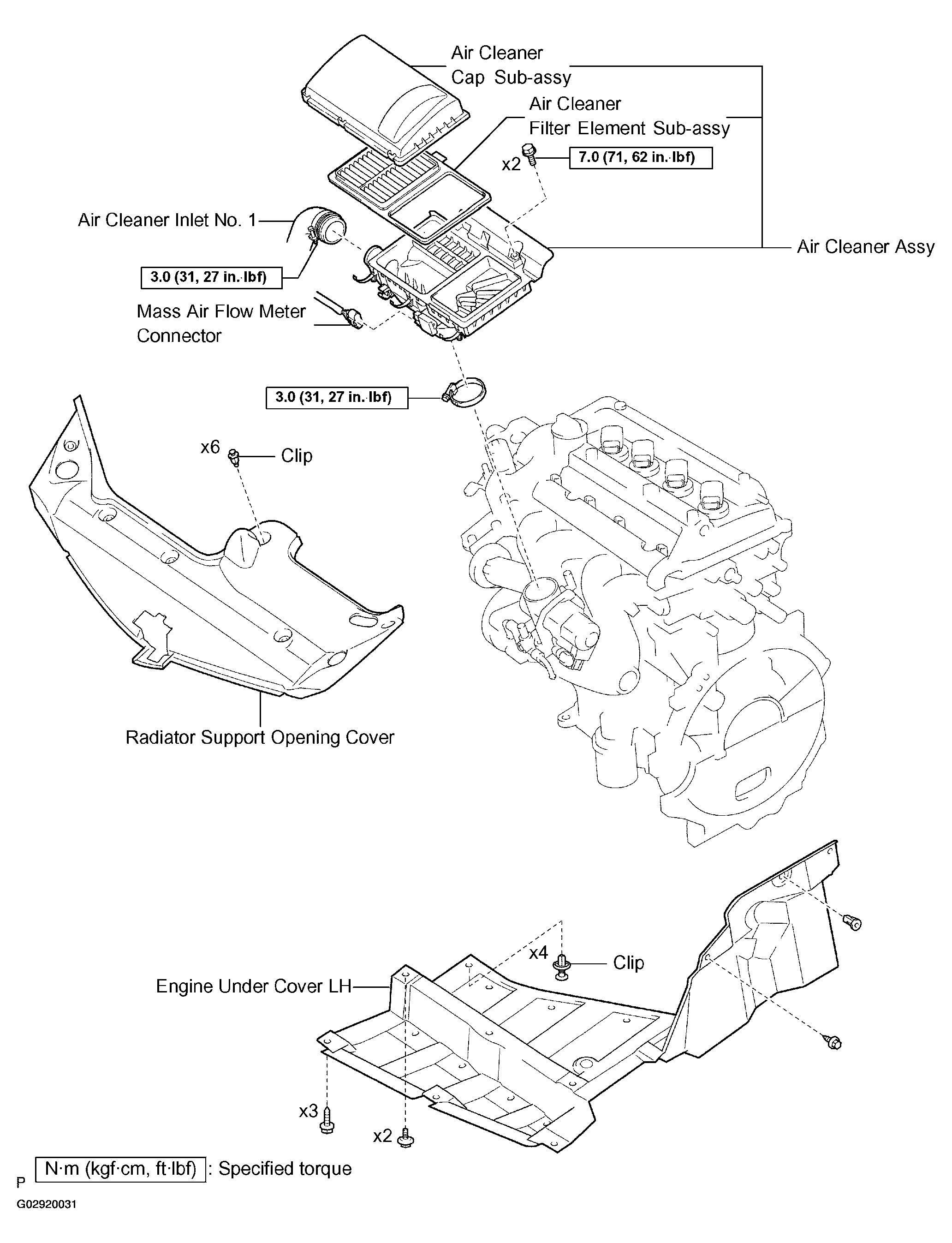

Fig 1: Locating Knock Sensor (1NZ-FXE) Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

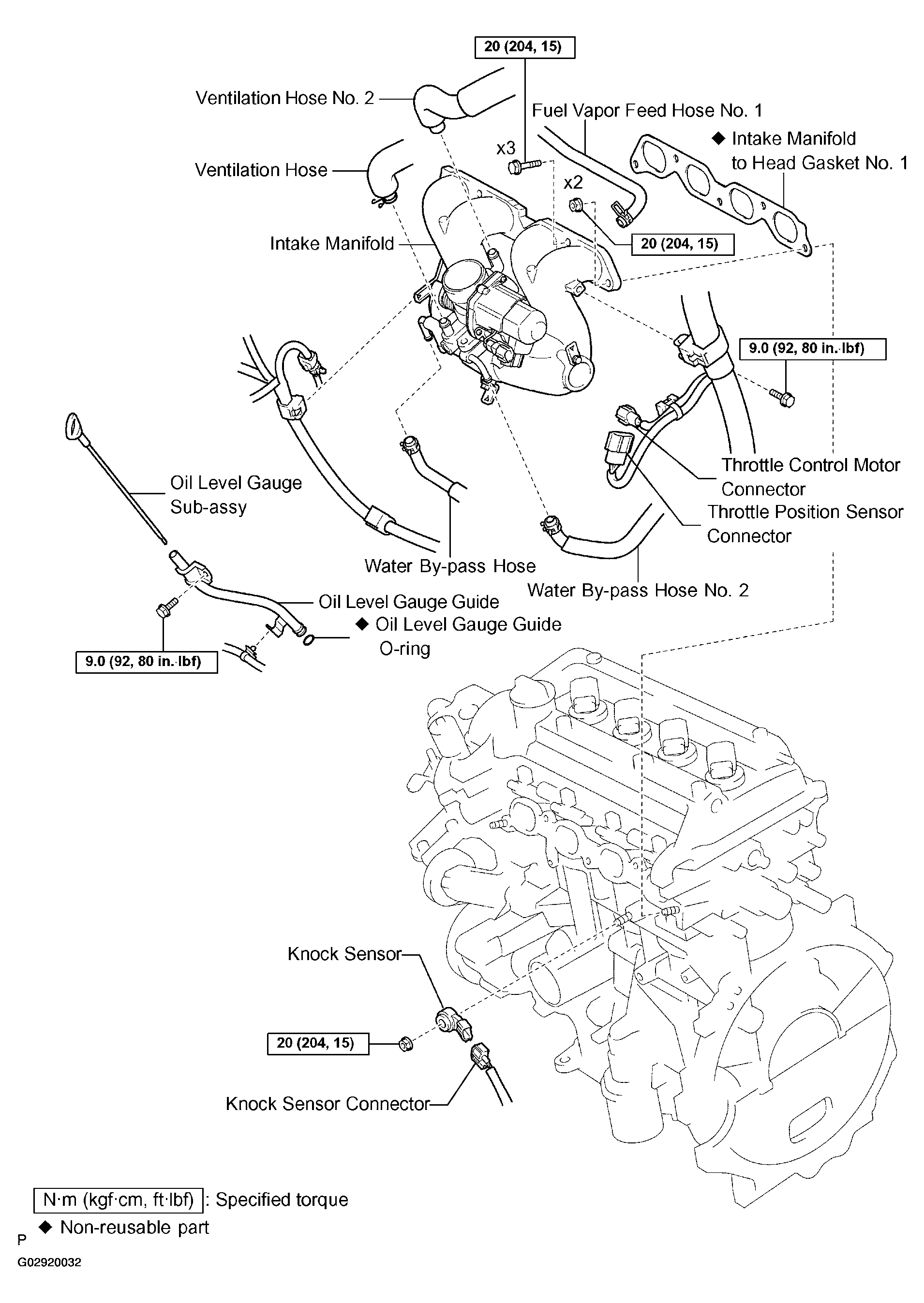

Fig 2: Locating Knock Sensor (1NZ-FXE) Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
