VEHICLE IDENTIFICATION NUMBER

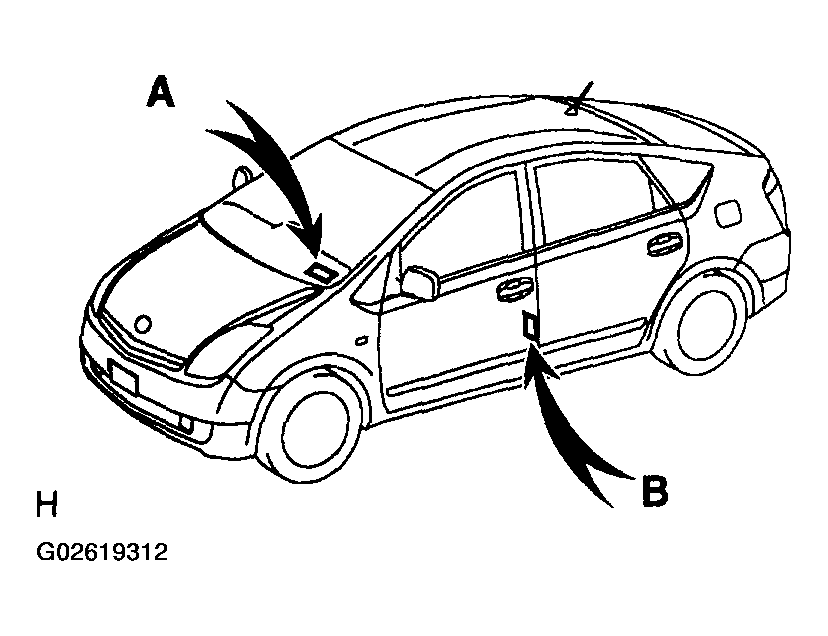

1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
  A: Vehicle Identification Number Plate

  B: Certification Label

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND MOTOR SERIAL NUMBER

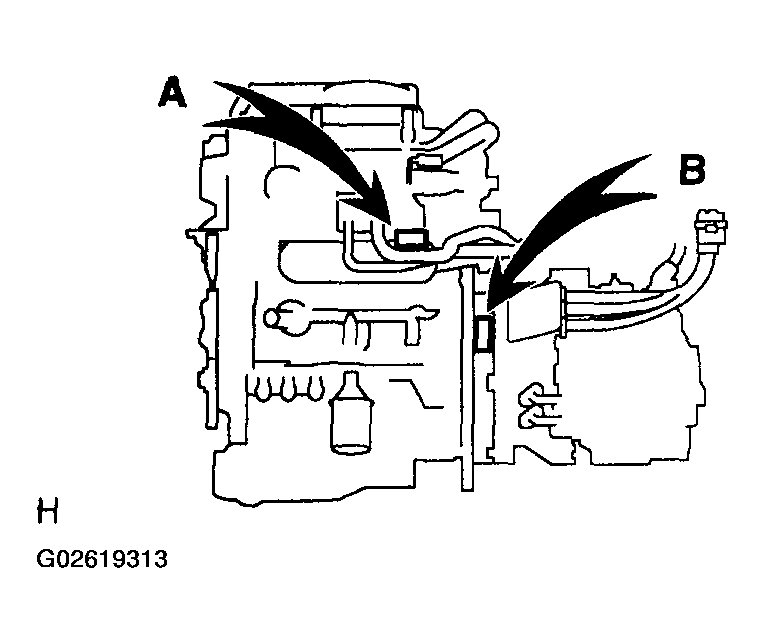

1. The engine serial number is stamped on the engine block, as shown in the illustration.
  A: Engine Serial Number
2. The motor serial number is stamped on the motor as shown in the illustration.
3. B: Motor Serial Number

  Fig 2: Identifying Engine Serial Number And Motor Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
