Matrix Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control/Dynamic Control System
>>
Anti-Lock Brake System
>>
Parts Location
Parts Location
Download the full database via torrent (~1.1 TB)

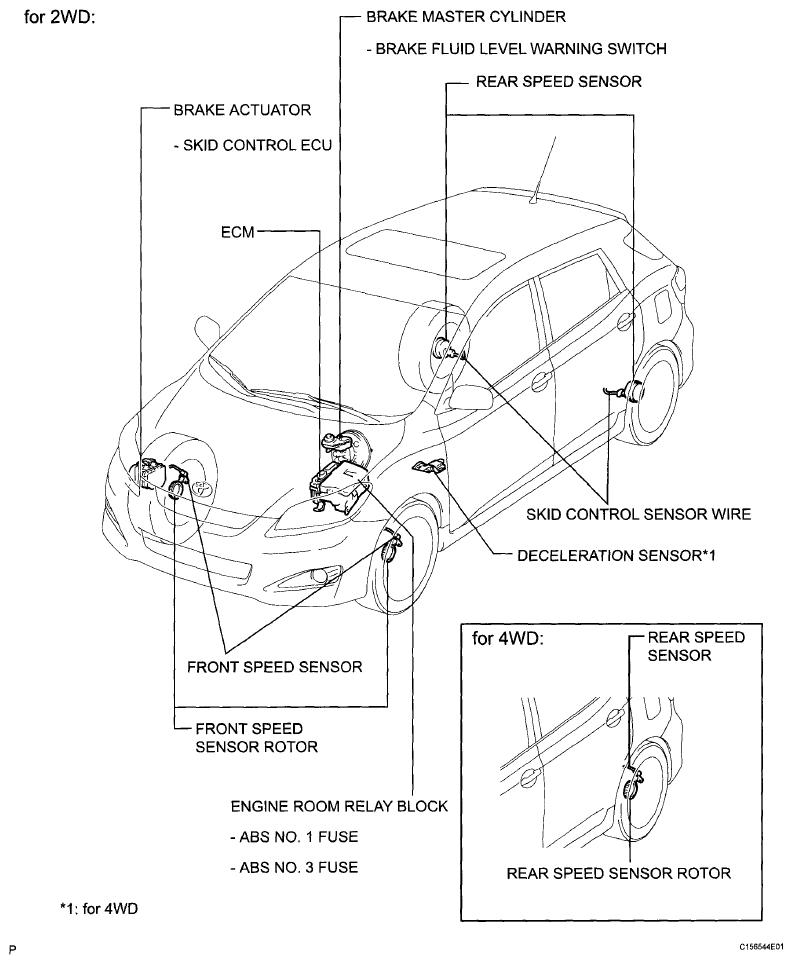

Fig 1: Identifying Anti-Lock Brake System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

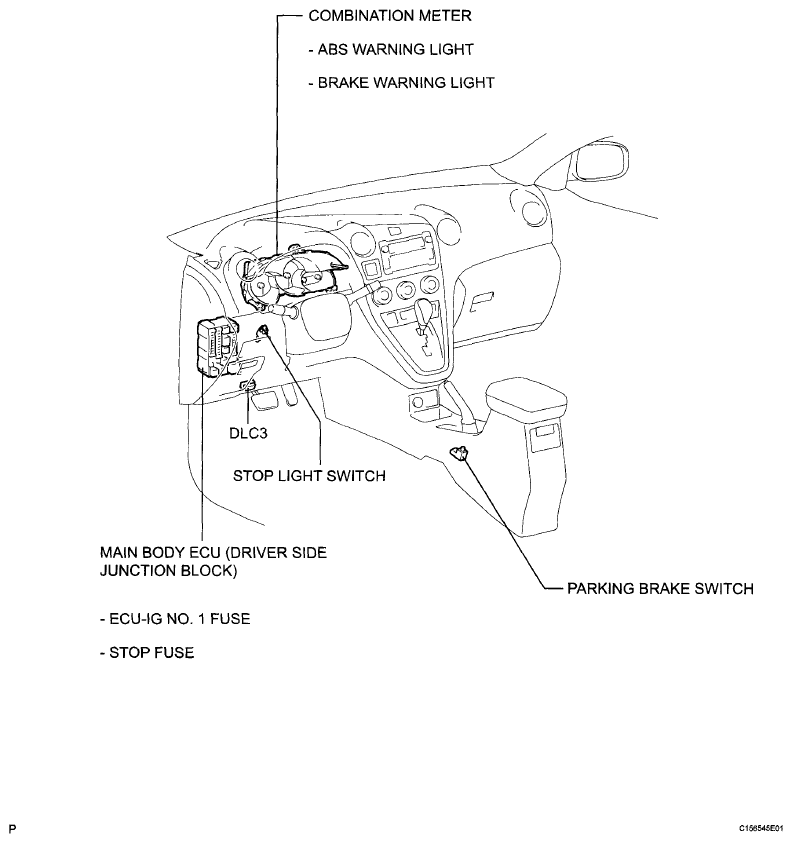

Fig 2: Identifying Anti-Lock Brake System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
