Front Speed Sensor: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G06035104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

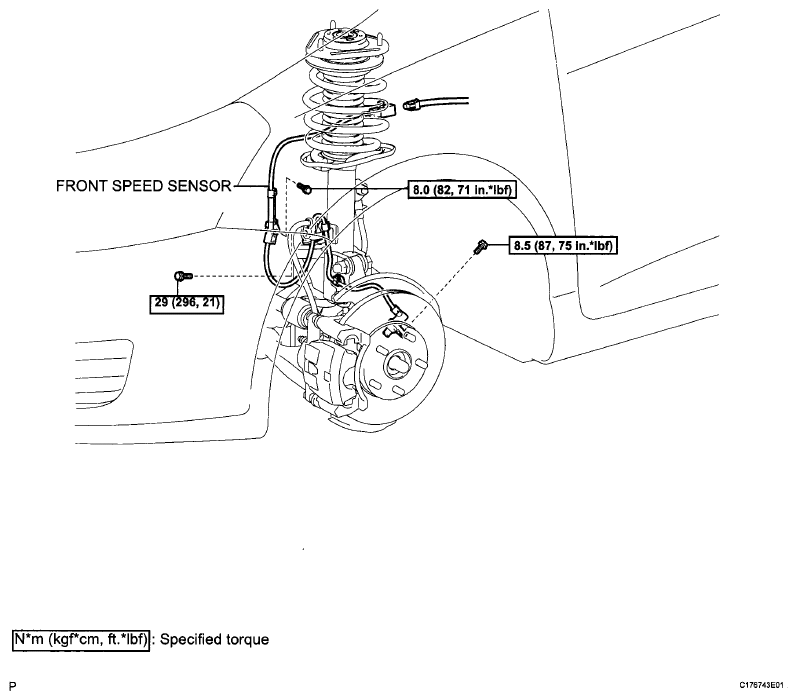

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G06035105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
