Shift Lock: Notes
Download the full database via torrent (~1.1 TB)

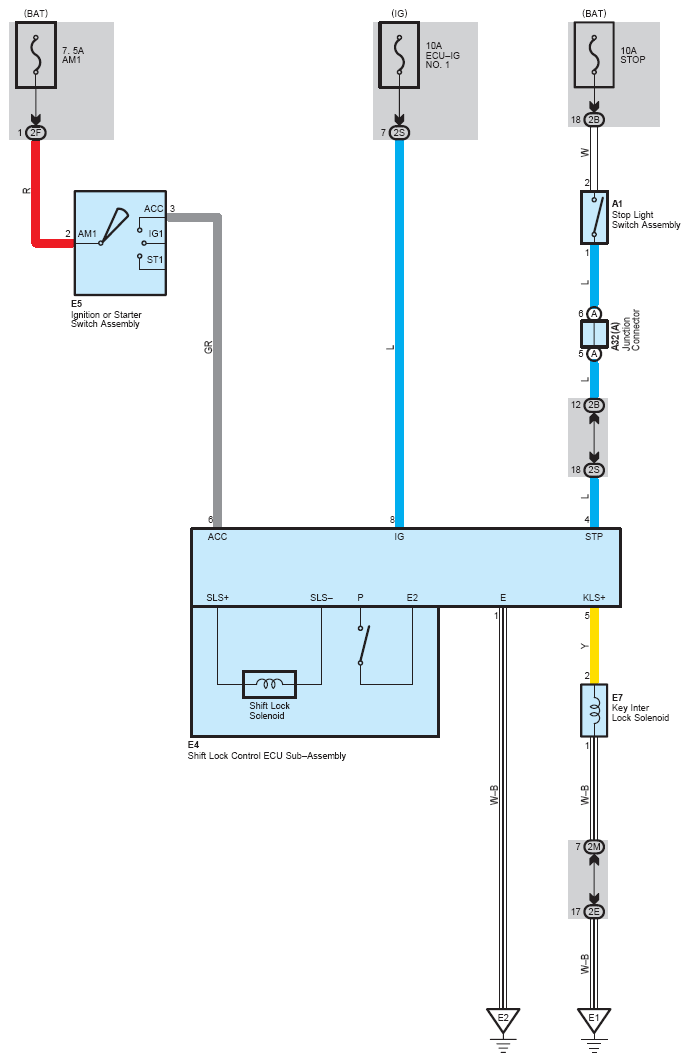

Fig 1: Shift Lock System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
