OEM System Circuits: Starting: Notes

Download the full database via torrent (~1.1 TB)

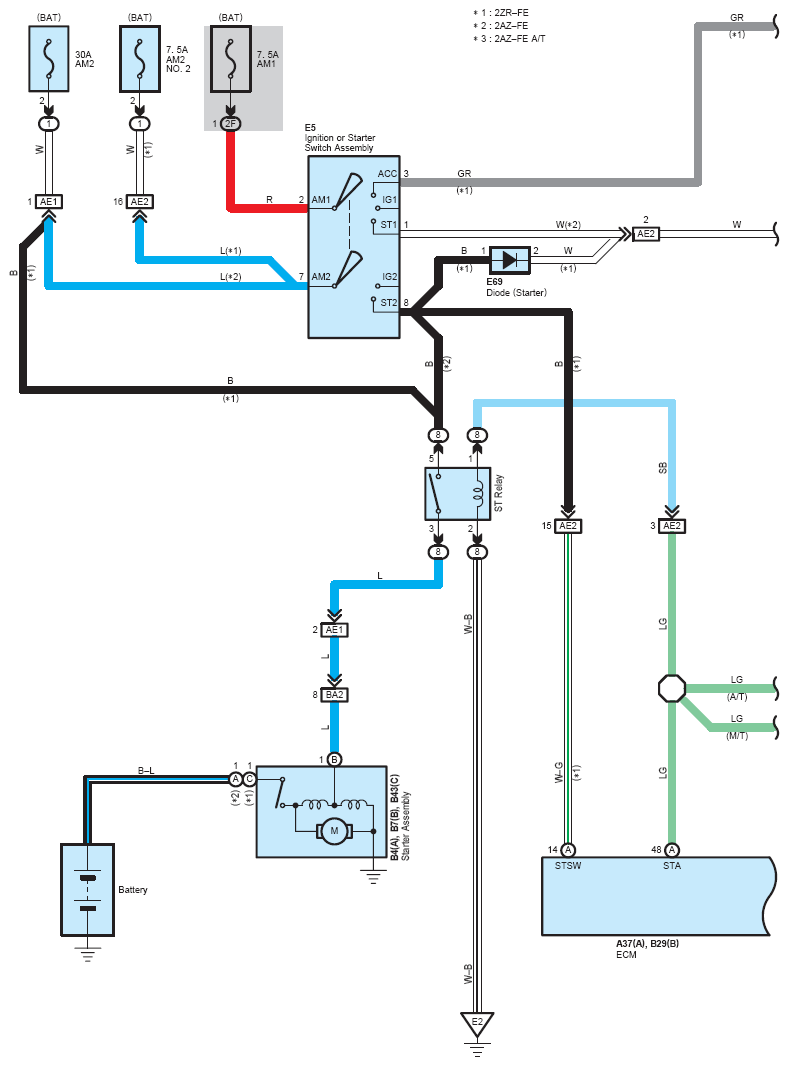

Fig 1: Starting System Wiring Diagram (1 Of 2)
G07114205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

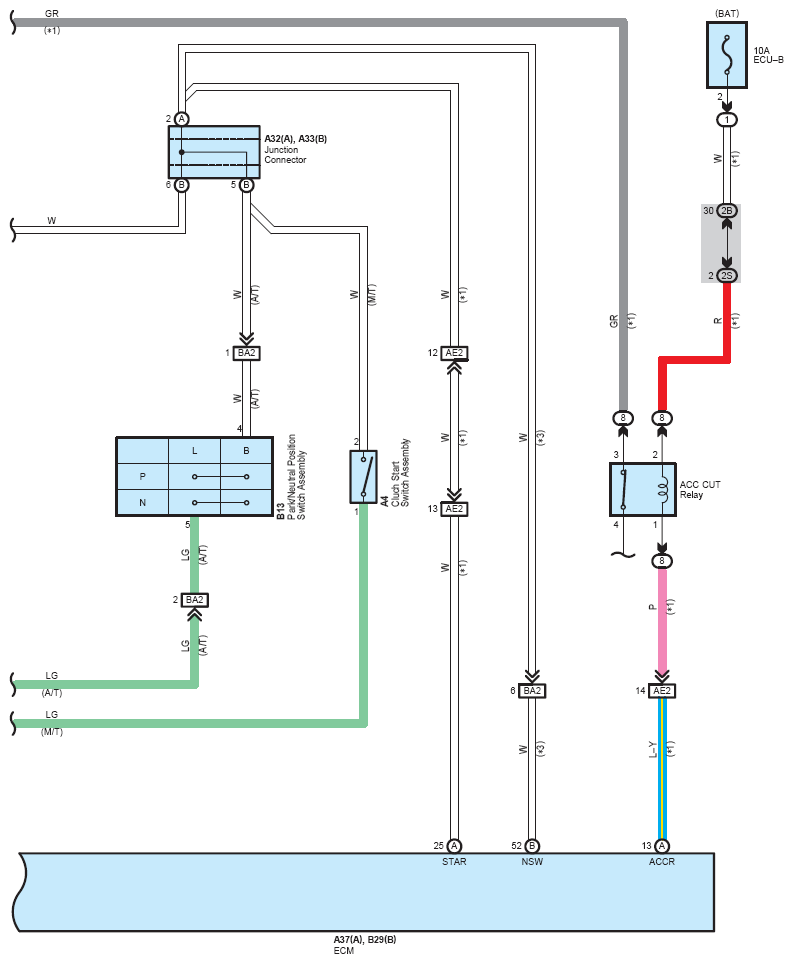

Fig 2: Starting System Wiring Diagram (2 Of 2)
G07114206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
