Engine Control System (Service Information): ECM: Components: Illustration

Download the full database via torrent (~1.1 TB)

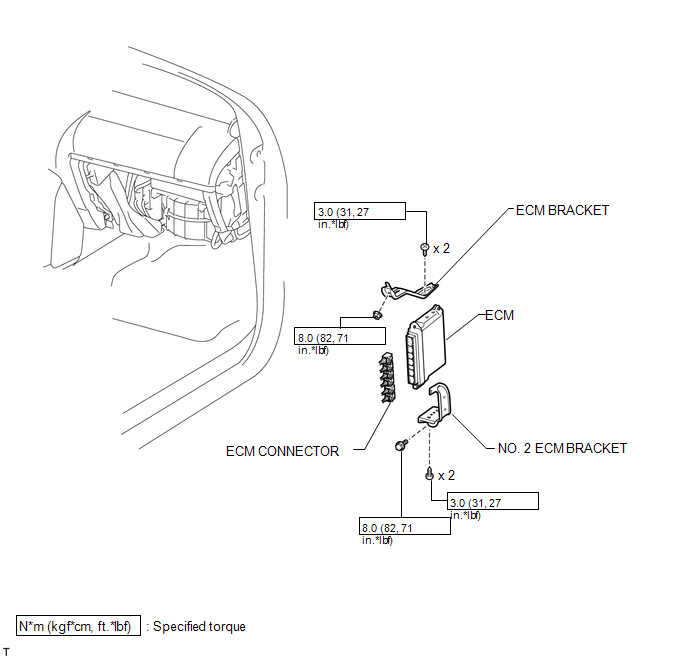

Fig 1: Identifying ECM Replacement Components With Torque Specifications
GTY221315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
