Throttle Body: Components: Illustration

Download the full database via torrent (~1.1 TB)

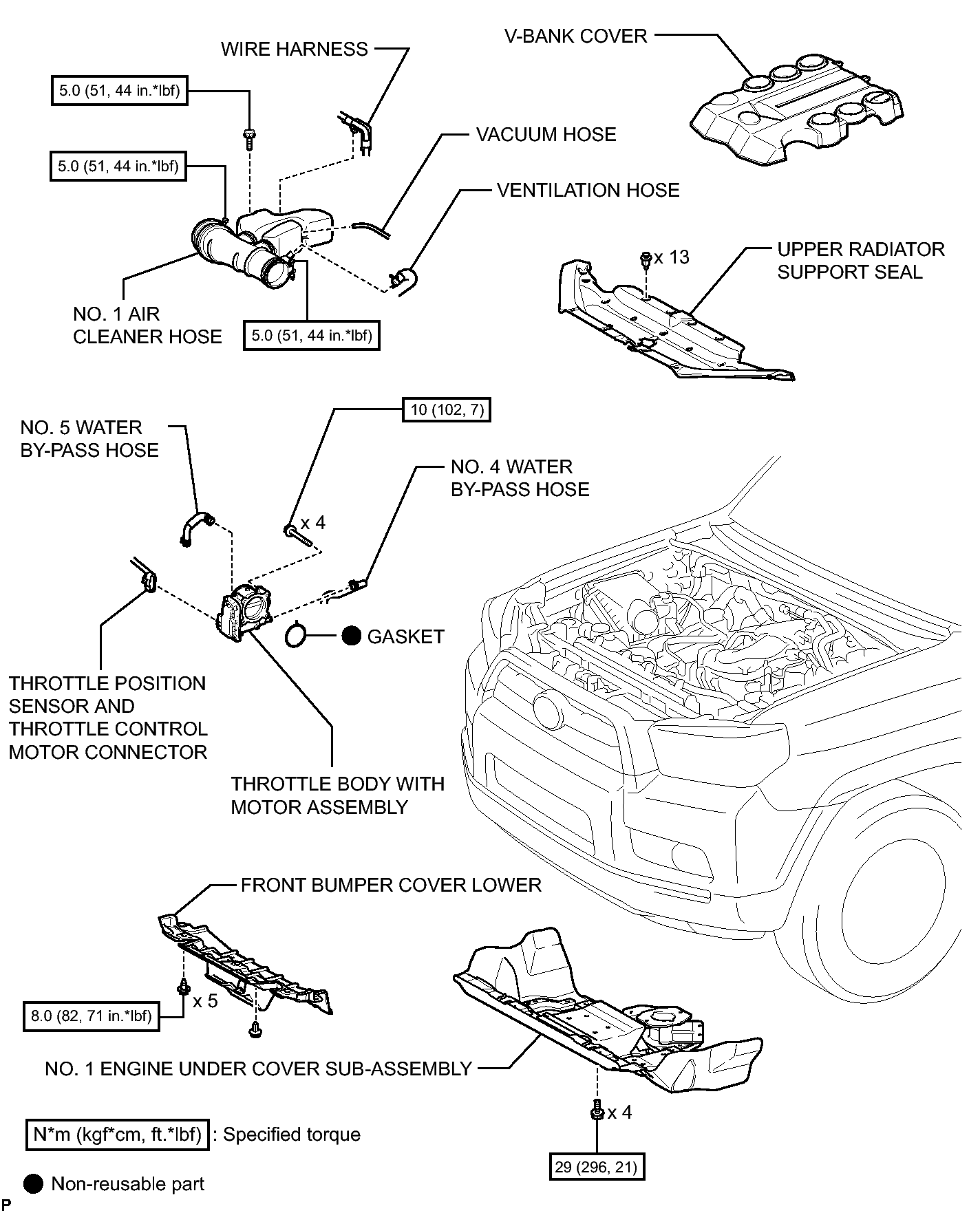

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications
GTY236327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
