VVT Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

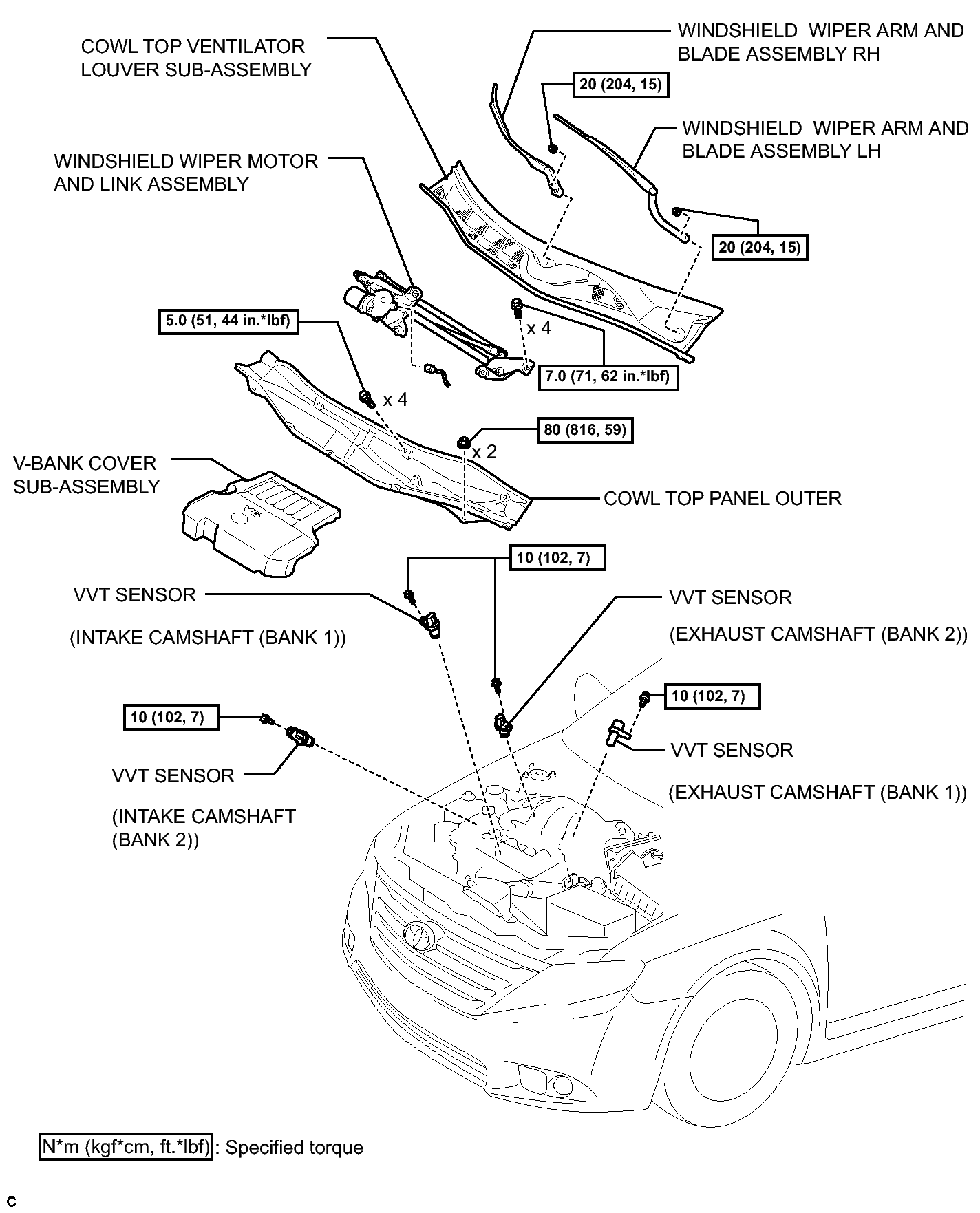

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications
GTY294821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
