Matrix Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Back-Up Light
>>
Notes
Back-Up Light: Notes
Download the full database via torrent (~1.1 TB)

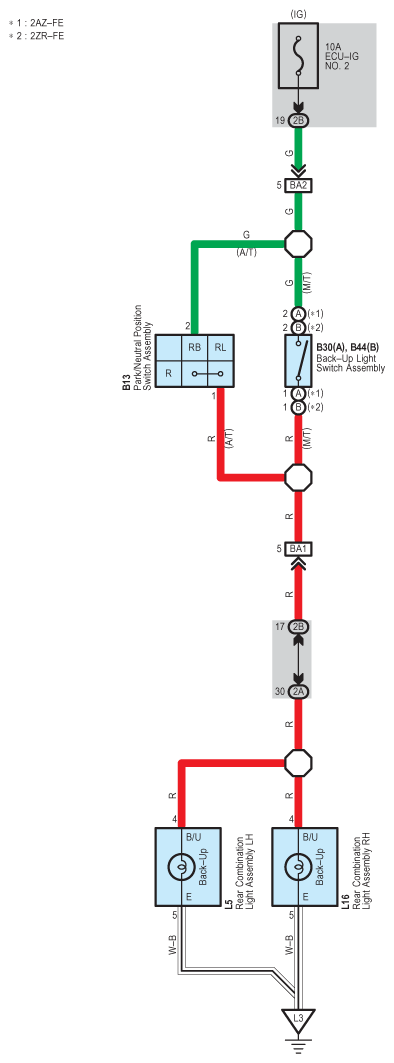

Fig 1: Back-Up Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
