Remote Control Mirror
>>
Notes
Remote Control Mirror: Notes
Download the full database via torrent (~1.1 TB)

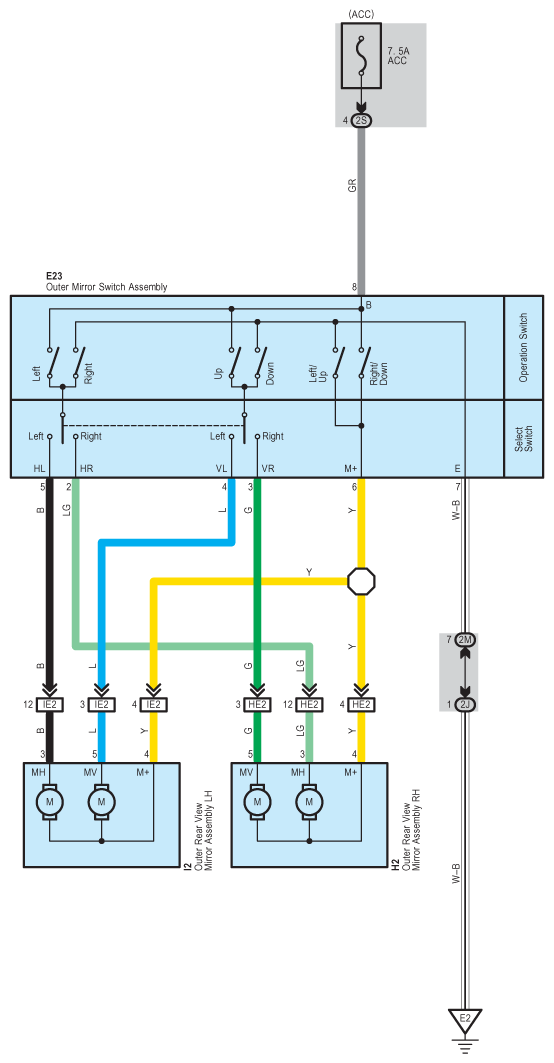

Fig 1: Remote Control Mirror Wiring Diagram
