Throttle Body: Components: Illustration

Download the full database via torrent (~1.1 TB)

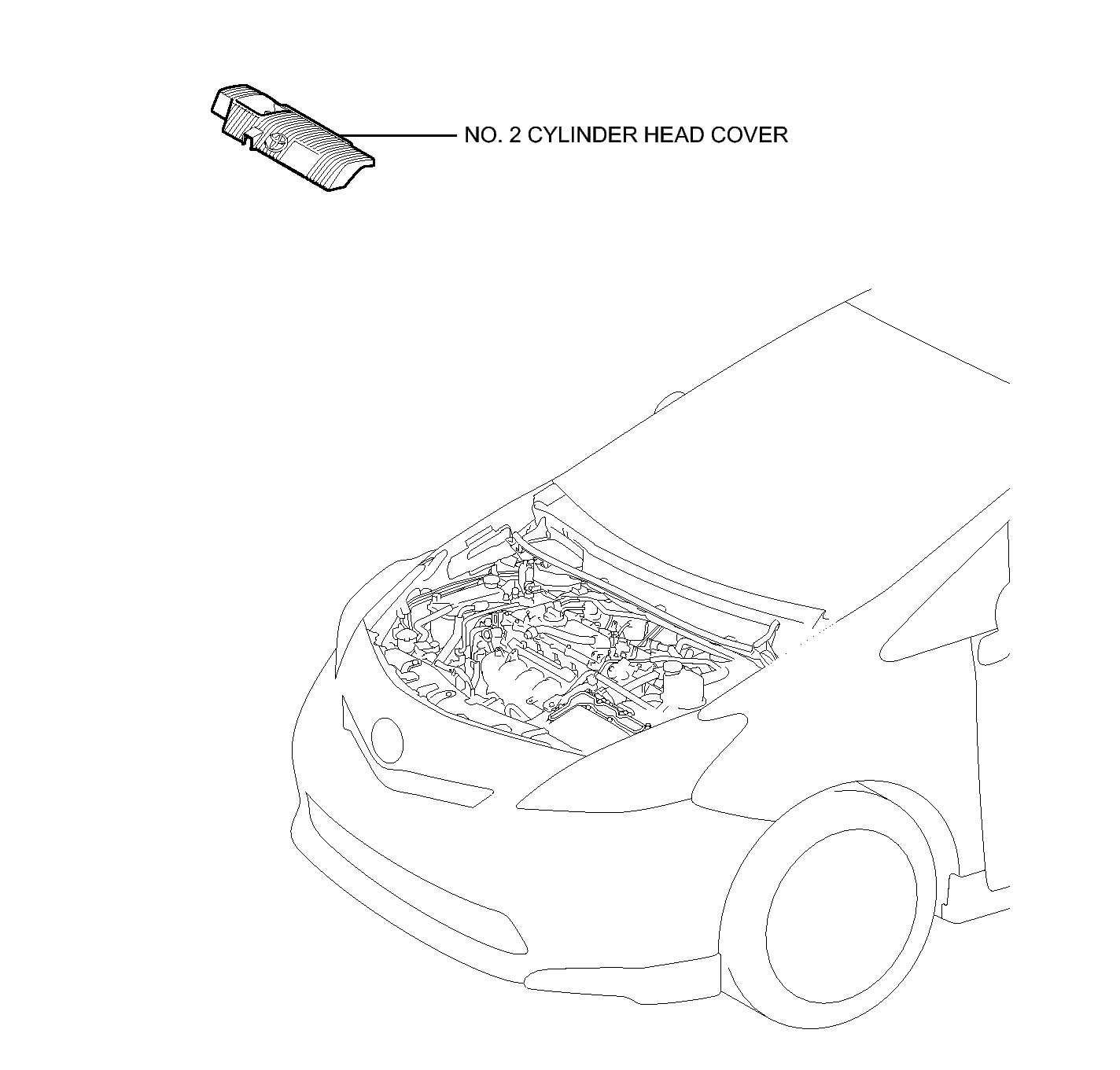

Fig 1: Throttle Body Replacement Components (1 Of 3)
GTY328954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

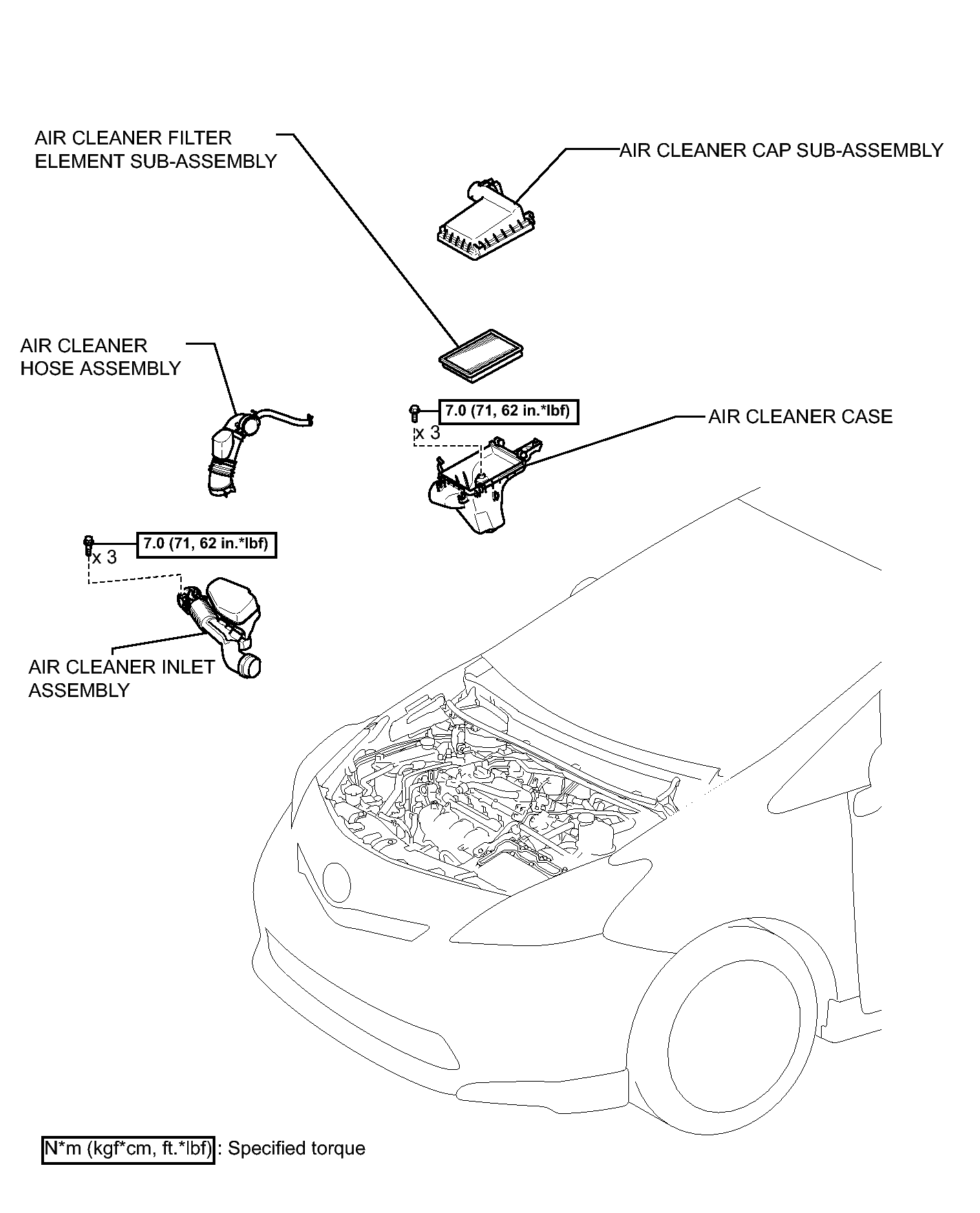

Fig 1: Throttle Body Replacement Components With Torque Specifications (2 Of 3)
GTY342940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

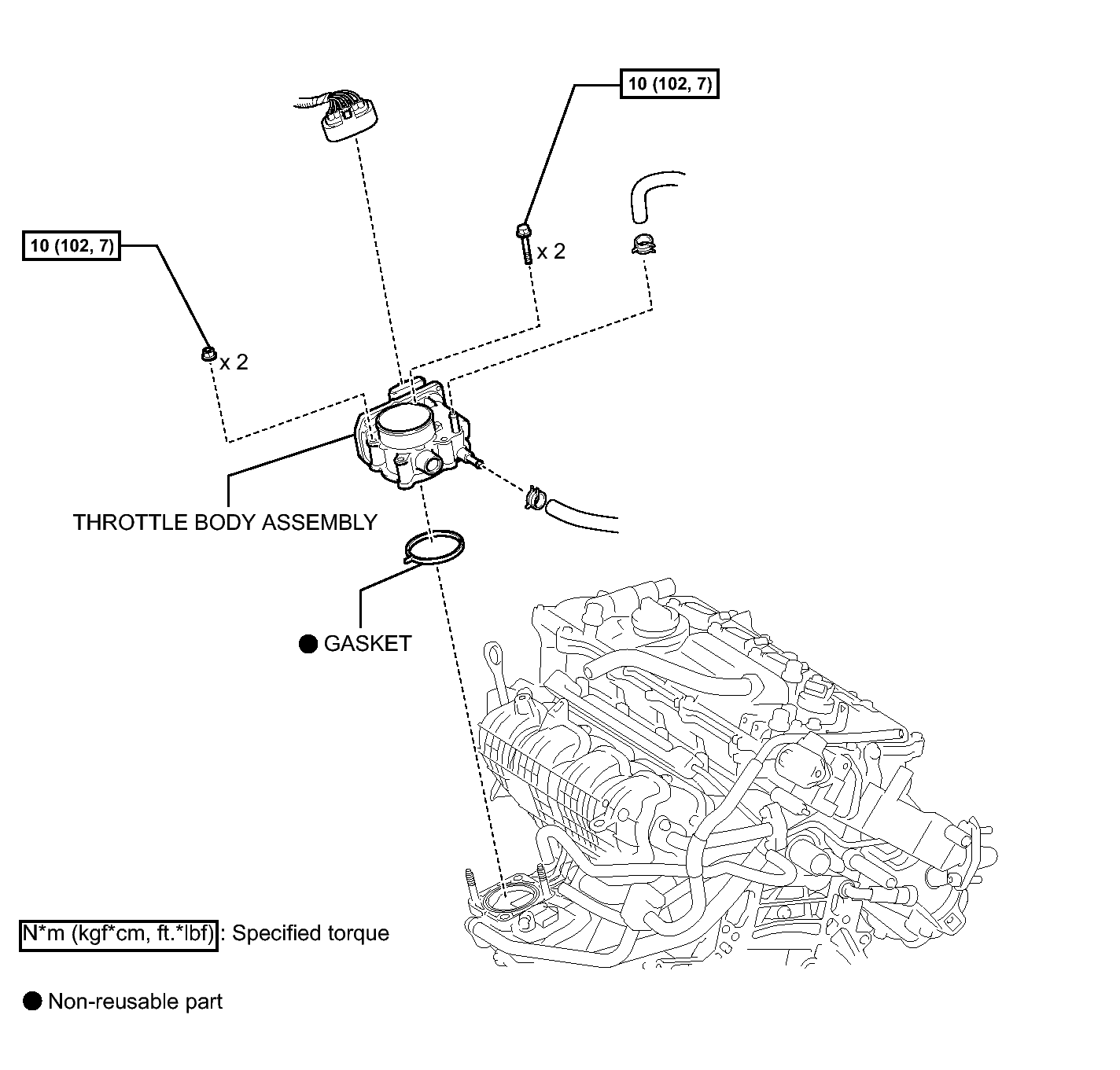

Fig 1: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
GTY334907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
