Engine Controls - 8.1L
>>
Specifications
>>
Ignition System Specifications
Ignition System Specifications
Download the full database via torrent (~1.1 TB)

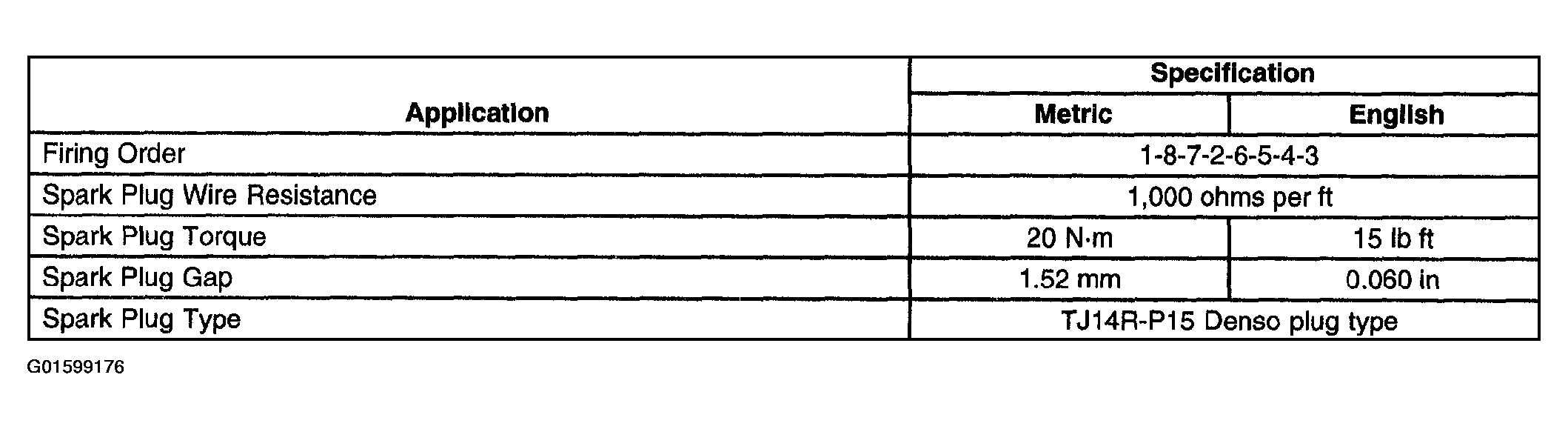

Fig 1: Ignition System Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
